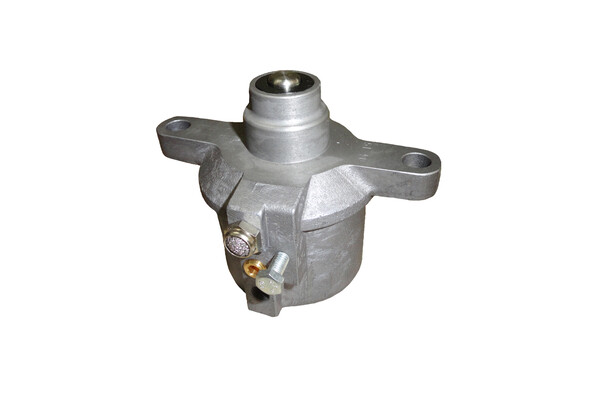

Air Rams



The piston type air operated ram can be used in place of
the standard diaphragm air ram used on Liquip foot valves.

The plunger is pushed forward by a piston when air is supplied to the air inlet. The air in the cylinder is expelled through the exhaust port. The air ram assembly also has a sequential port the can be connected to other air rams in series.

A jacking screw is provided to allow manual opening of the valve in the event of air pressure loss (note that this does not fully open the valve).

Recommended products for replacement

    Categories
    Technical Information

    Materials
    -Aluminium body.
    -Stainless steel poppet.
    -Viton seals and gasket.
    -Acetal piston.

    Pressure
    60mm bore.
    Needs a minimum of 350 kPa of air pressure, to open the foot valve fully.

    Dismantle
    Air ram operator assembly is easily removable & replaceable, being a self-contained externally mounted assembly.

    Mounting
    Bolted to SLV5 body using M10 screws and spring washers with a sealing gasket.

    Weight
    0.65 kg.

    Ordering Information

    ARO100: Air Ram Assembly for SLV5 series footvalve (Viton A).

    ARO100C: Chemical Air Ram Assembly for SLV5-AROC footvalve (FFKM).

    ARO100VG: Air Ram Assembly for SLV5-AROC footvalve (Viton GFLT).

    Associated Equipment

    SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seal.

    SLV5-AROZ: SLV5:ARO comes with Neo Cork Gaskets (tank and pipe flange).

    SLV5-AROVZ: SLV5:ARO comes with Viton A Gaskets (tank [3mm] and pipe [3mm] flange).

    SLV5-AROTVZ:SLV5:ARO comes with 1.6mm Viton A Gaskets (tank [1.6mm] and pipe [3mm] flange).

    SLV5-AROAVI: Air Operated Internal Valve with Bonded Viton A seal - Aviation Specification.

    SLV5-AROAVIZ: SLV5-AROAVI comes with NBR Corke Gaskets (tank and pipe flange).

    SLV5-AROC:Air Operated Internal Valve with Bonded FFKM seal - Chemical.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart

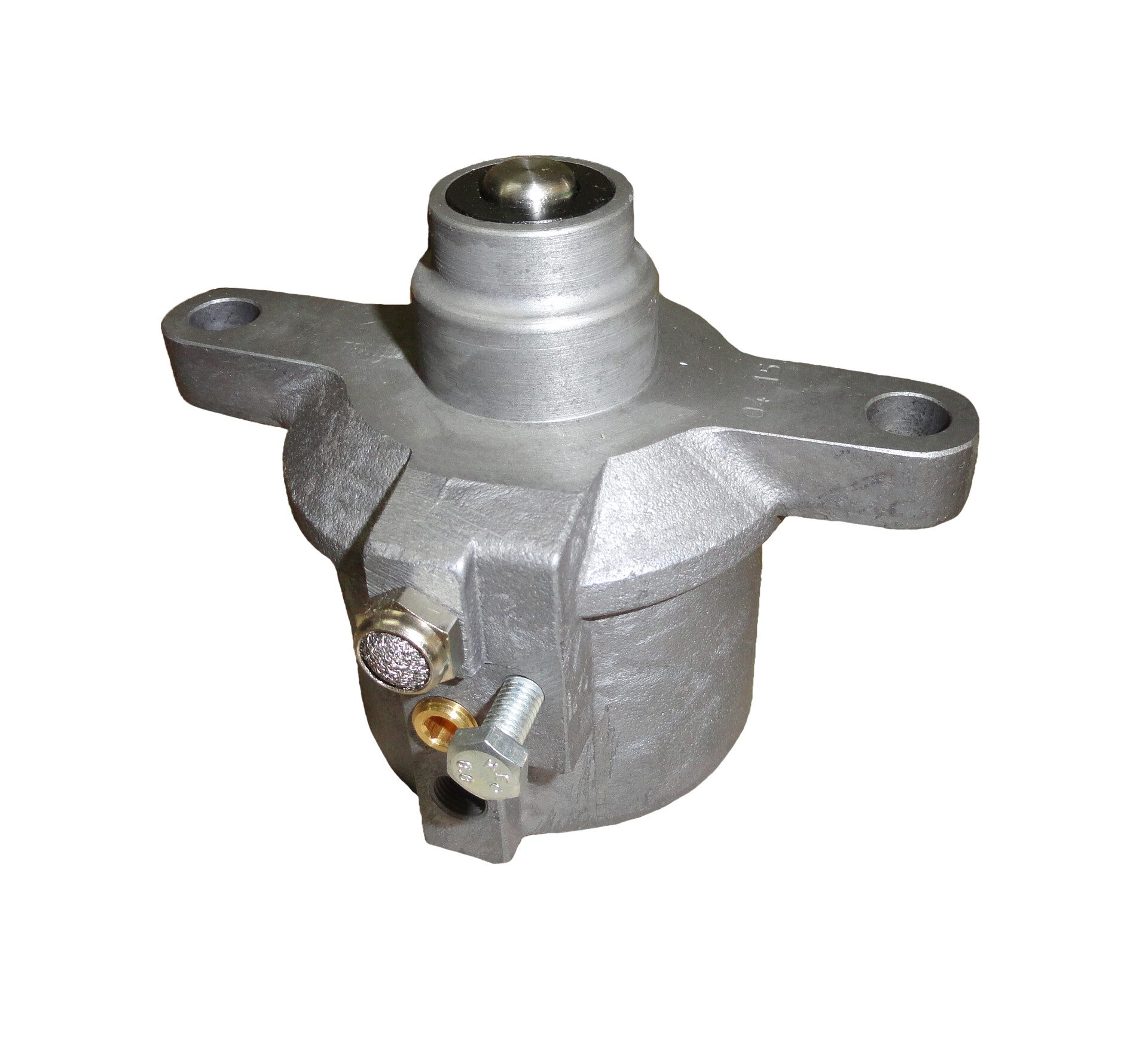

    ARO100 Air Ram Assembly for SLV5 series footvalve (Viton A).
